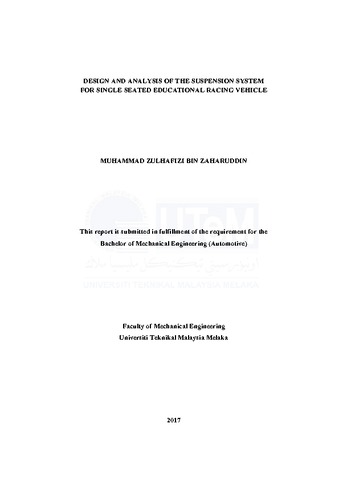

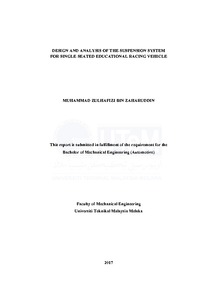

Design And Analysis Of The Suspension System For Single Seated Educational Racing Vehicle

Zaharuddin, Muhammad Zulhafizi (2017) Design And Analysis Of The Suspension System For Single Seated Educational Racing Vehicle. Project Report. UTeM, Melaka, Malaysia. (Submitted)

Text (24 Pages) Design And Analysis Of The Suspension System For Single Seated Educational Racing Vehicle.pdf - Submitted Version Download (362kB)

Abstract

The suspension system is one of the most important and basic systems in a vehicle. The purpose of the vehicle suspension system is to maximize the friction between the road surface and the tires to provide the stability of the steering and also a good handling of the vehicle. In this project, the suspension was designed by using a CATIA V5 software for the single seated racing vehicle. In case of the racing vehicle, the most suitable suspension system is a push rod suspension system because of the characteristic of the system is convenient with the racing vehicle. Furthermore, the designed suspension will be analyses with a Von Misses analysis and Translational Displacement analysis in a CATIA software. The parameters of the suspension are also considered in this project while running an analysis of the suspension by using MATLAB Simulink software to find a pitch body and roll dynamic of the vehicle. The objective of this projects is to design a low-cost suspension system and perform a stress analysis on the designed suspension system. Then, to analyses the behavior of the suspension in the pitch and roll dynamic of the vehicle.
