Development of graphical user interface (GUI) of car dashboard from controller area network (CAN) bus

Nur Sakinah , Mohd Ismail (2014) Development of graphical user interface (GUI) of car dashboard from controller area network (CAN) bus. Project Report. UTeM. (Submitted)

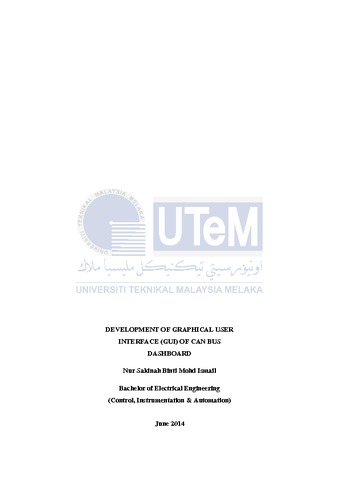

Text DEVELOPMENT OF GRAPHICAL USER INTERFACE (GUI) OF CAN BUS DASHBOARD 24pages.pdf Download (631kB)

Abstract

Nowadays, most of display system had been using digital and even Graphical User Interface (GUI) to provide the best application system. Purpose of this project is to develop a GUI display for Controller Area Network (CAN) dashboard. In this project, Controller Area Network (CAN) dashboard is chosen to improve their display system application. The CAN was used to control the performance of dashboard. Meanwhile, GUI was designed to display the performance of parameter. Therefore, CAN Bus is specialized to connect interaction between the dashboard and the input of circuit. CAN is a serial network that was originally designed for the automotive industry. It was primarily used in embedded system and consists of two wires, half duplex, high speed network system. The CAN systems are well suited for high speed application using short wire. GUI is type of user interface allow interaction with electronic devices through graphical icons and visual indicator. This application is designed to make the program interactive and user friendly. By using GUI, user can be free from learning complex command languages. Therefore, in this project required coding to display GUI Car Dashboard and CAN Bus network to connect GUI with micro board. In Chapter 1 explains on the introduction, objectives, and scope regarding this project. Then Chapter 2 is literature review to explain some theory involved and previous papers according to these theories. There are more than 10 previous research paper had been referred to complete this project. In Chapter 3 will explain about methodology of this project divide into 2 parts which is software part and hardware parts. Chapter 4 shows the results and analysis based on the results. Lastly, Chapter 5 explains about conclusion and recommendation in future towards this project.
